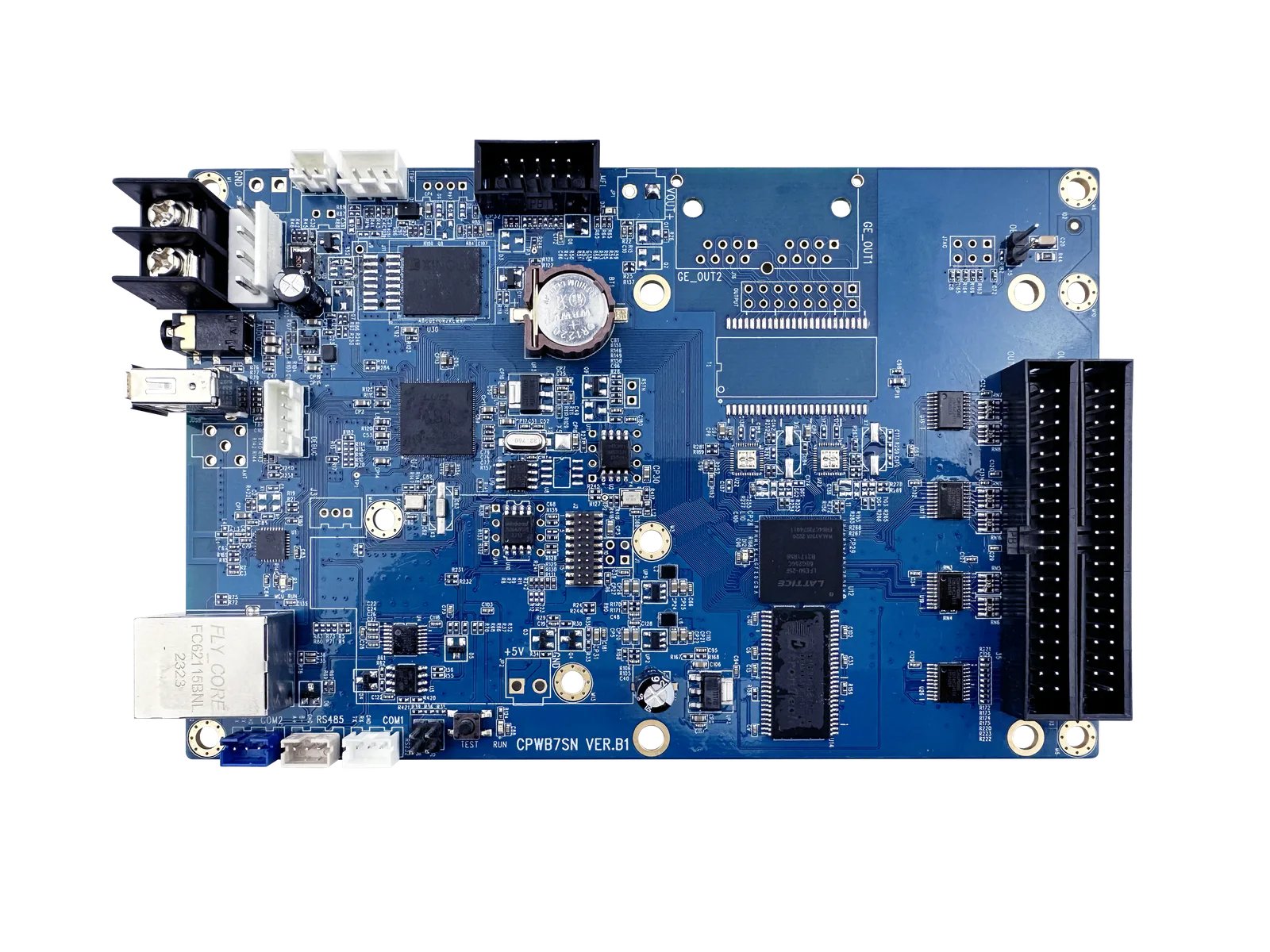

C-Power 60A Full-Colour Controller

Full-colour Controller family with hardware-decoded video and direct module output.

Specifications

ColourFull colour with greyscale

Width × height limits768 × 512 pixels

Communication60A: Ethernet + USB + RS232/485 · 61A: Wi-Fi + Ethernet + USB + RS232/485 · 64A: 4G + Ethernet + USB + RS232/485

Storage256 MB or 8 GB

Hardware videoHardware decoding supported

Playback windowsUp to 32 windows per program

Video windowsUp to 4 windows play video at the same time

High refreshHigh refresh needs this C-Power 6 Series Controller and a listed PWM driver chip. View chip compatibility

Board interfacesTwo 40P interfaces, HUB1 and HUB2 · KB21, KB20, KB04, or KB02 adapter board

MappingSerpentine wiring supported via screen.map file

Use the exact variant name in your enquiry.

Keep communication and capacity choices on this product page.

A 40P ribbon cable links the main board to an adapter board with eight output ports.
HUB75 modules use the KB21 adapter board.
HUB08 modules use the KB20 adapter board.
HUB12 modules use the KB04 adapter board.
HUB40 modules use the KB02 adapter board.
Dual-signal modules use up to two adapter boards and sixteen output ports.
Single-signal HUB12 modules use up to four adapter boards and thirty-two output ports.
One output port connects to one module.

The shared c-power SDK and external call protocol are used across the full Controller range.

Mapping and protocol support use the same Controller platform across the range.

Use current guidance while preparing the project requirements.

Include screen dimensions, module interface, communication method, and quantities.
